BENECOR DEF MINI-BULK & BULK SYSTEMS

DISPENSER

• BENECOR 1/2 HP DEF Submersible Pump
• Turnkey – Connect To Your Point-Of-Sale
• Weights & Measures Approved Meter & Systems
• Kraus Global Micon™ 500 Electronic Register
• Oval Gear DEF Meter
• 1 Micron Filter For DEF Purity
• Automatic DEF Stainless Steel Nozzle With Breakaway Swivel
• 25′ Hose, 25′ Hose Reel & All Necessary Hose Hardware
• Integrated Nozzle Boot Switch Relay To Operate Pump

ENCLOSURE

• Pre-Wired & Pre-Piped For Simple Fast & Easy Installation
• Lockable Side Access Door For Service & Security

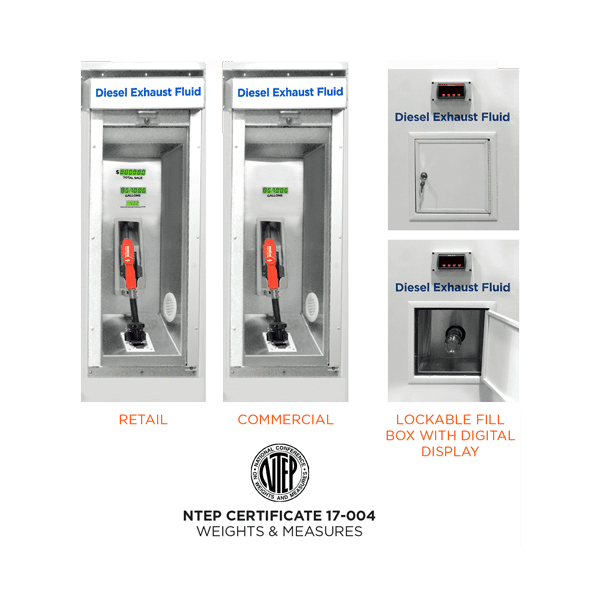

• Lockable Fill Box With Digital Display
• Environmentally Safe – 110% Secondary Containment
• Powder Coated Steel Base
• Fiberglass Enclosure
• Anchor Brackets
• External Digital Level Display
• UL, cUL Enclosed Electrical Panel & Components
• Forklift Accessible
• Insulated To Maintain Temperature
• Insulated Roll Lock Nozzle Door & Hardware Protects Nozzle & Meter
• Island-Friendly 1,000 Gallon Enclosure Size: 120″ Wide x 109″ High x 46″ Deep
• Additional Available Sizes: 2,300, 3,200, 4,200 & 6,000 Gallons – Contact BENECOR For Dimensions

MAXX-DUTY OPTIONAL FEATURES INCLUDE

• Remote Level Monitoring System (Veeder-Root or others)
• Stainless Steel Overfill Prevention Valve
• Strobe Light To Warn Against Low Temperature Inside Enclosure
• Low Level Warning Light
• Thermostatically Controlled Heater
• Several Configurations Available

KRAUS GLOBAL MICON™ 500 FEATURES

• RS232, RS422, MNET, Modbus, Gilbarco, Tokheim Interfaces
• Multiple Decimal Point Configurations
• Hand-Held Communicator For “At Pump” Price Setting & Totals Display
• Programmable Configuration Parameters
• Supports Electronic Communications With Consoles For Functions Such As Remote Setting & Totalizer Reading
• Dual Channel Quadrature Pulser Inputs
• Pulser & Display Error Detection
• Low Battery Indicator & Automatic Shutdown On Pulser Fault
• 1,000 Pulses Per Second Input
• Volume & Dollar Pulser Outputs
• Audit Trail Event Counter
• Built-In-Slow-Down Solenoid Control Driver For Prepay Or Preset Operation – See Optional Enclosure Features
• Battery Backup (Greater Than 6 Months) With Data Display While AC Power Is Off
• Currency Rate On The MICON™ 500 Is Completely Adjustable To Comply With All Currencies
• MICON™ 500 Models Are Approved By: CSA (NRTL), Measurement Canada, NTEP (W&M)
• Non-Resettable Value Totalizers To 1O Digits
• Non-Resettable Volume Totalizers To 1O Digits
• HARDWARE OPTIONS: Two Tier Price Switch With Independent Volume & Value Totalizers For Each Of The Two Prices & Preset Option With Digital Keypad

OVAL GEAR DEF METER FEATURES

• Easily Serviced In Place
• “Zero Point” Calibration In Place – Can Measure 1 Million Gallons Between Zero Point Adjustments
• Accurately Measures DEF
• NTEP & Measurement Canada Approved For DEF Custody Transfer
• Positive Displacement Oval Gear Technology
• All Wetted Materials Are Approved Per ISO 22241-3
• Patented “Wave Form” Gear Technology
• Three-Piece Case Construction
• PULSER: Internal Hall Effect Pulser & SCL Signal Conditioner With Quadrature Signal Out
• METER PERFORMANCE: Repeatability & Linearity: Meets NTEP & Measurement Canada (MC) Requirements – Tested To ± 0.25% Linearity, 0.1% Repeatability With 5O Liter Test Standard

ENGINEERED FOR THE RETAIL/COMMERCIAL CUSTOMER

An original BENECOR design, we specifically engineered our rugged system to withstand the challenging environment of the Retail/Commercial customer. Because DEF freezes at 12˚F (-11˚C), we offer a unique Cold Weather package designed to withstand even the harshest cold weather conditions many Retail/Commercial Customers experience.

ISLAND-FRIENDLY

Our 1,000 Gallon Mini-Bulk Maxx-Duty DEF Dispensing Systems are designed to fit on a standard Fueling Island.

POINT-OF-SALE FLEXIBILITY

Regardless of which Point-of-Sale system you use or plan to use, our BENECOR DEF Retail/Commercial Maxx-Duty Dispensing & Storage System integrates easily with various P.O.S. equipment.

TURNKEY — NOTHING IS FASTER OR EASIER

Our simple turnkey installation “BENECOR PLUG & PUMP™” design will have you dispensing/selling DEF fast. Just secure the system to your pre-determined site, hook-up electricity, fill with DEF and start pumping.

RELIABLE & DURABLE

Our rugged fiberglass based unit is fully tested to help ensure years of trouble-free use. Paired with the durable, high quality products you’ve come to expect from BENECOR, our DEF Mini-Bulk Maxx-Duty Dispensing & Storage Systems are a smart solution built to suit the DEF dispensing and storage needs of the Retail/Commercial Customer.

APPLICATION FLEXIBILITY

Your DEF dispensing and storage applications may be different than others which is why BENECOR offers our DEF Mini-Bulk Maxx-Duty Dispensing System in several different tanks sizes. In fact, BENECOR offers the largest tank size, of comparable DEF Mini-Bulk Dispensing & Storage Systems, on the market.

SECURE

All BENECOR DEF Mini-Bulk Maxx-Duty Dispensing Systems are equipped with both a lockable side access door for security and service as well as a lockable fill box.

STANDARDS / APPROVALS

All BENECOR DEF Mini-Bulk Maxx-Duty Dispensing & Storage Systems meet the ISO 22241-3 & 4 standards for the dispensing and storage of DEF.
*Might require local weights & measures certification.
